Generator Interlock Kit: Secure Your Home Power with Reliable Backup Solutions

Generator interlock kit devices provide a safe, affordable way to connect a portable generator to your home’s electrical system during power outages, preventing dangerous backfeeding into utility lines.

These kits mechanically lock the main breaker and generator breaker so only one can be active at a time, complying with NEC standards like Article 702.5 for transfer equipment.

By October 2025, advancements include enhanced compatibility with smart panels and improved materials for durability, with over 1 million units installed nationwide according to industry estimates.

Kits typically support 30 amp to 200 amp main setups, ensuring residential homes can maintain essential circuits like lights and refrigerators, reducing outage impacts that affect 50 million Americans annually.

What Is a Generator Interlock Kit?

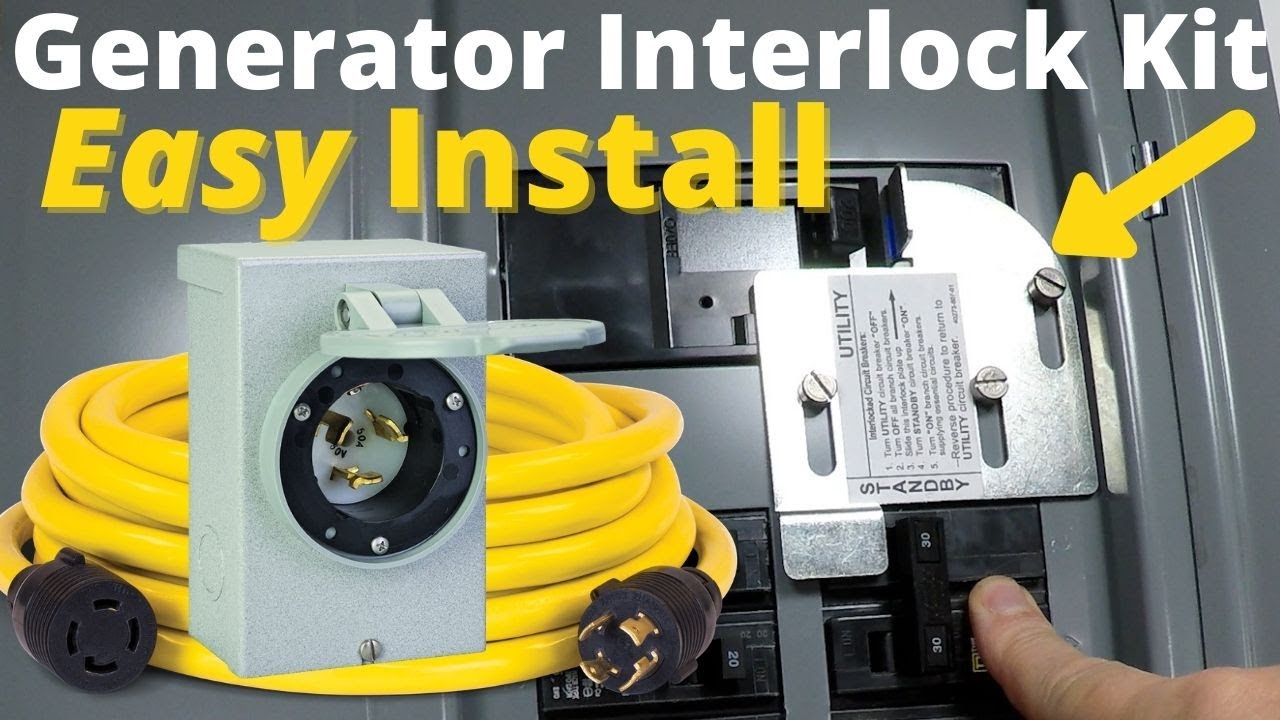

A generator interlock kit is a device that allows homeowners to safely link a generator to their breaker panel without risking electrical hazards.

It consists of a metal plate or slide mechanism that physically blocks the main breaker from turning on while the generator breaker is engaged, and vice versa. This setup acts like a manual transfer switch but at a lower cost, typically ranging from $60 to $150 in 2025.

In essence, the interlock kit integrates into your electrical panel, requiring a dedicated circuit breaker for the generator.

Brands like GenInterlock offer models that fit various panel types, ensuring broad applicability. During an outage, you start your portable generator, flip the interlock, and power selected circuits directly.

Moreover, these kits promote code compliance by eliminating the need for unsafe practices like backfeeding through dryers. With 2025 updates emphasizing weather-resistant components, they withstand harsh conditions better, extending lifespan to 10-15 years.

How Do Generator Interlock Kits Work?

Interlock kits work by creating a mechanical barrier between the main breaker and the generator breaker in your breaker panel.

When utility power is available, the interlock secures the generator breaker in the off position. During an emergency, you shut off the main breaker, slide or shift the interlock, and activate the generator breaker to feed power from your gen.

This process relies on precise alignment; the kit’s plate or lever ensures no overlap, preventing overload or feedback. For instance, in a 200 amp panel, the kit handles loads up to the generator‘s rating, like a 30 amp generator supplying 7,200 watts.

Updated 2025 models incorporate tamper-resistant designs, reducing accidental misuse. The electrical interlock also includes labels per NEC 702.7, warning of dual sources.

Benefits of Using a Generator Interlock Kit for Backup Power

Installing a generator interlock kit delivers reliable backup power without the high cost of whole-home systems, often saving $1,000+ compared to automatic transfers.

It enables selective circuit powering, prioritizing essentials during prolonged outages, which averaged 7 hours in 2024 U.S. storms.

Safety is paramount; the kit eliminates generator backfeed risks to linemen, complying with code and potentially lowering insurance premiums by 5-10%. Portable setups allow flexibility, moving the gen as needed.

In 2025, enhanced kits like those from Eaton feature quick-install brackets, cutting setup time to under 2 hours for pros. This cost-effective solution supports residential resilience against increasing blackouts from climate events.

Comparing Generator Interlock Kit to Manual Transfer Switch

A generator interlock kit offers simplicity over a manual transfer switch, integrating directly into your existing panel without subpanels.

While both prevent simultaneous power sources, interlocks cost less—around $100 vs. $500 for switches—and handle whole panel loads if your generator suffices.

However, manual transfer switches isolate specific circuits automatically, ideal for non-electricians. Interlocks require manual breaker flipping, but provide more flexibility in circuit selection.

Here’s a comparison table:

Transitioning to interlocks suits budget-conscious users, while switches fit structured needs.

Compatible Panels for Generator Interlock Kits

Generator interlock kits are designed for specific electrical panel brands to ensure seamless fit. Popular compatibilities include Siemens, Eaton, and Square D lines like QO and Homeline, covering most residential setups.

For BR or Cutler Hammer panels, kits like GenInterlock‘s models align with vertical-throw breakers. Always verify spacing—typically 1-2 inches between main breaker and generator breaker slots.

In 2025, expanded compatibility includes hybrid smart panels, with kits now supporting RV integrations for mobile use.

Amp Ratings and Sizing Your Generator Interlock Kit

Selecting the right amp rating for your generator interlock kit matches your panel‘s capacity and generator output. A 30 amp kit suits smaller portable generators up to 7,500 watts, while 200 amp main options handle larger loads.

Size by calculating essential circuit amps—e.g., fridge (5 amps), lights (10 amps)—ensuring no overload. Amp generator mismatches cause trips.

2025 kits feature adjustable ratings, with 50 amp variants gaining popularity for mid-range standby systems.

Installation Guide for Generator Interlock Kit

Proper installation of a generator interlock kit demands caution, ideally by a licensed electrician. Start by shutting off utility power at the meter.

1. Remove panel cover, identify main breaker position.
2. Install generator breaker in designated slot, connect wires.
3. Mount interlock plate, secure with screws.
4. Test mechanism: Slide to lock main breaker off, engage gen.
5. Reattach cover, add NEC labels.

Detailed instructions vary by brand; Eaton kits include templates. Time: 1-2 hours, cost: $250-$500 labor in 2025.

Post-install, inspect for secure fit to avoid arcing.

Safely Connect Your Portable Generator

To safely connect your portable generator, use a heavy-duty cord rated for your amp load, plugging into the generator inlet. Position the gen outdoors, 20 feet from windows to prevent CO poisoning.

During outages, start the generator, flip breakers off except essentials, then engage interlock. Monitor fuel; a 10,000-watt unit runs 8-10 hours on full tank.

2025 safety updates include integrated surge protection in kits.

Electrical Code Compliance for Interlock Kits

Code compliance for interlock kits follows NEC Article 702, requiring mechanical prevention of dual sourcing. Kits must be UL-listed, with signs per 702.7 warning of backup power.

Local codes may mandate permits; in 2025, states like California require grounding verification. Ensure professional install to meet standards, avoiding fines up to $1,000.

Non-compliance risks voided warranties and hazards.

Common Brands Like Eaton and Siemens

Leading brands like Eaton offer robust interlock kits for CH panels, priced at $80-$120, known for durability. Siemens models fit EQ panels, emphasizing easy slides.

GenInterlock provides affordable options at $70, with custom fits for older panels. Reviews in 2025 praise their weatherproofing.

Choose based on panel match for optimal performance.

Preventing Backfeed and Overload with Interlock Kits

Interlock kits excel at preventing backfeed, where generator power flows into grids, endangering workers. The mechanism stops backfeeding by isolating sources.

For overload, limit loads to generator capacity—e.g., avoid running AC on a 5,000-watt unit. Kits include breakers that trip excesses.

2025 enhancements add visual indicators for status.

Setup for Residential Emergency Power

Residential setup with a generator interlock kit involves mapping emergency circuits like HVAC or wells. Install near the panel for short cable runs.

During storms, this provides uninterrupted electricity for 24-48 hours. Setup costs average $500 in 2025, yielding peace of mind.

Wiring and Inlet Box Integration

Wiring a generator interlock kit uses 10-gauge wire for 30 amp setups, connecting from inlet box to breaker. The generator inlet mounts outdoors, weatherproofed.

Route wire through conduits, grounding per code. Inlet box options include twist-lock for secure plugs.

Professional handling prevents shorts.

Custom Options for 200 Amp Panels

Custom kits for 200 amp panels accommodate high-demand homes, supporting 50 amp generators. Features like extended plates fit unique layouts.

In 2025, 3D-printed customs cost $100 extra, ensuring perfect alignment.

Grounding and Secure Installation Tips

Proper grounding bonds the generator frame to the panel‘s ground bar, using 8-gauge wire. Secure mounts with torque specs prevent vibrations.

Tips: Use locknuts, inspect annually. This averts shocks.

Generator Interlock Kit for RV and Standby Use

For RV applications, compact interlock kits integrate with onboard panels, supporting 30 amp shore power. Standby variants automate partial transfers.

Versatile for mobile or fixed use in 2025.

Cost-Effective Power Solutions in 2025

Cost-effective generator interlock kits in 2025 average $100, with full installs at $600. Avoid high cost alternatives by choosing UL-certified models.

Savings compound with efficient power management.

FAQs

What is a generator interlock kit?

A generator interlock kit is a safety device that mechanically prevents simultaneous operation of your home’s main breaker and generator breaker, allowing safe backup power from a portable generator.

How do interlock kits work?

Interlock kits work by using a slide or plate to lock one breaker off while the other is on, ensuring no backfeed into utility lines during power outages.

Are generator interlock kits code compliant?

Yes, they meet NEC Article 702 requirements for transfer equipment, provided they are UL-listed and installed by a professional electrician.

What amp rating do I need for my kit?

Match the amp rating to your panel and generator; 30 amp for small units, up to 200 amp main for larger residential systems to avoid overload.

Can I install a generator interlock kit myself?

While possible with instructions, hiring an electrician is recommended for safety and code compliance, typically costing $250-$500.

What brands are best for interlock kits?

Top brands include Eaton, Siemens, and GenInterlock, offering reliable, compatible models for various breaker panels.

How does it compare to a transfer switch?

A generator interlock kit is more affordable and flexible than a manual transfer switch, but requires manual circuit selection during use.

Conclusion of Generator Interlock Kit

In conclusion, a generator interlock kit empowers homeowners with secure, efficient backup power solutions, bridging portable generators to electrical panels amid rising outages.

From installation simplicity to code adherence under NEC 702, these devices—enhanced in 2025 with smarter compatibilities—mitigate risks like backfeed and overload while keeping costs low.

Whether for residential emergency needs or RV mobility, they ensure reliable power, fostering resilience in an unpredictable grid era.
